Goodby Silverstein building, May 2015

LEDs, Raspberry Pi, custom Python image processing scripts.


This is a project I made with my fellow junior creatives at Goodby Silverstein. We decided to create a light painting of the GS&P logo across the entire front of our office building.

To generate an image with light painting, you can program a strip of LEDs to flash one column (or row) of pixels at a time. If you move the strip at a constant speed, you can reproduce an image in the camera exposure.

We decided to hang a long column of LEDs from the roof of our building, and move them horizontally, gradually revealing the logo in a long exposure.

The LED strip is 8 meters long. It’s made of 256 individual LEDs, all of which are controlled by a Raspberry Pi B+. Both the RPi and the LEDs are powered by a single 5V/10A power supply, which runs up to an outlet conveniently located on the roof.

Using a script 100% borrowed from Adafruit, the Raspberry Pi can parse a PNG image file, one column of pixels at a time. It then sends those pixel color values to the LEDs at a rate of your choosing. We used a 20 second exposure time, so the full image took about 18 seconds to cycle through.

We had a team hang the LED strip from the roof and walk it horizontally across the exposure. Two cameras on the ground captured it from different angles.

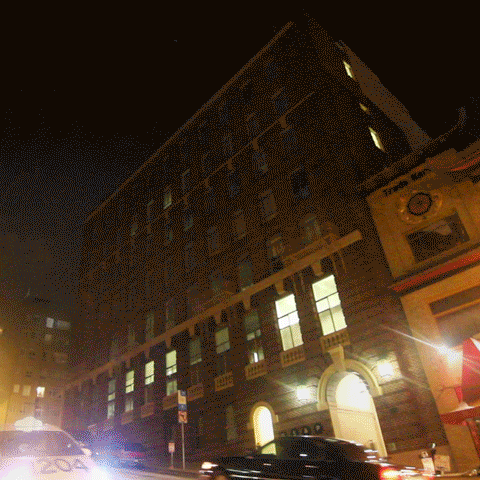

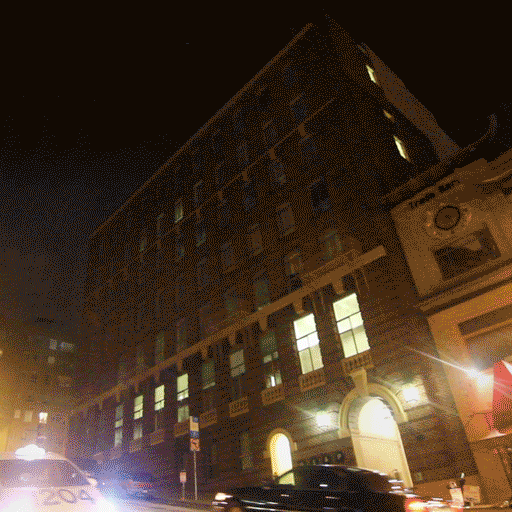

In real time it doesn't look like much.

But taken with a long exposure...

The hardest part is timing. The LED strip has to be moved at a perfectly constant pace. Because of wind and edges on the building, that can be hard to do.

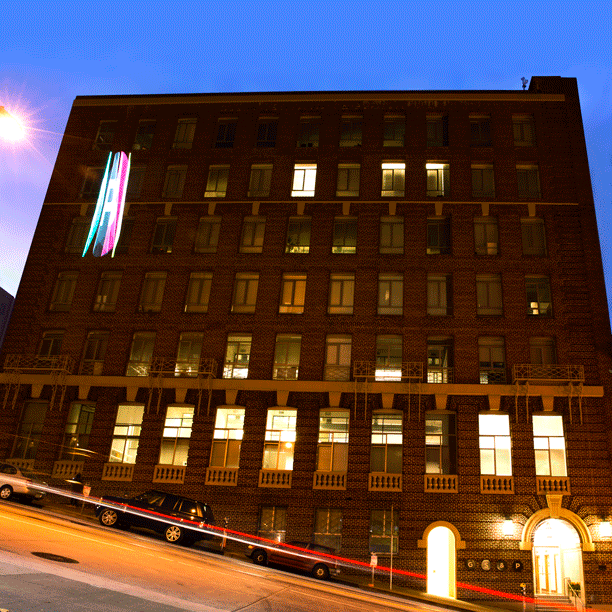

We had lots of outtakes.

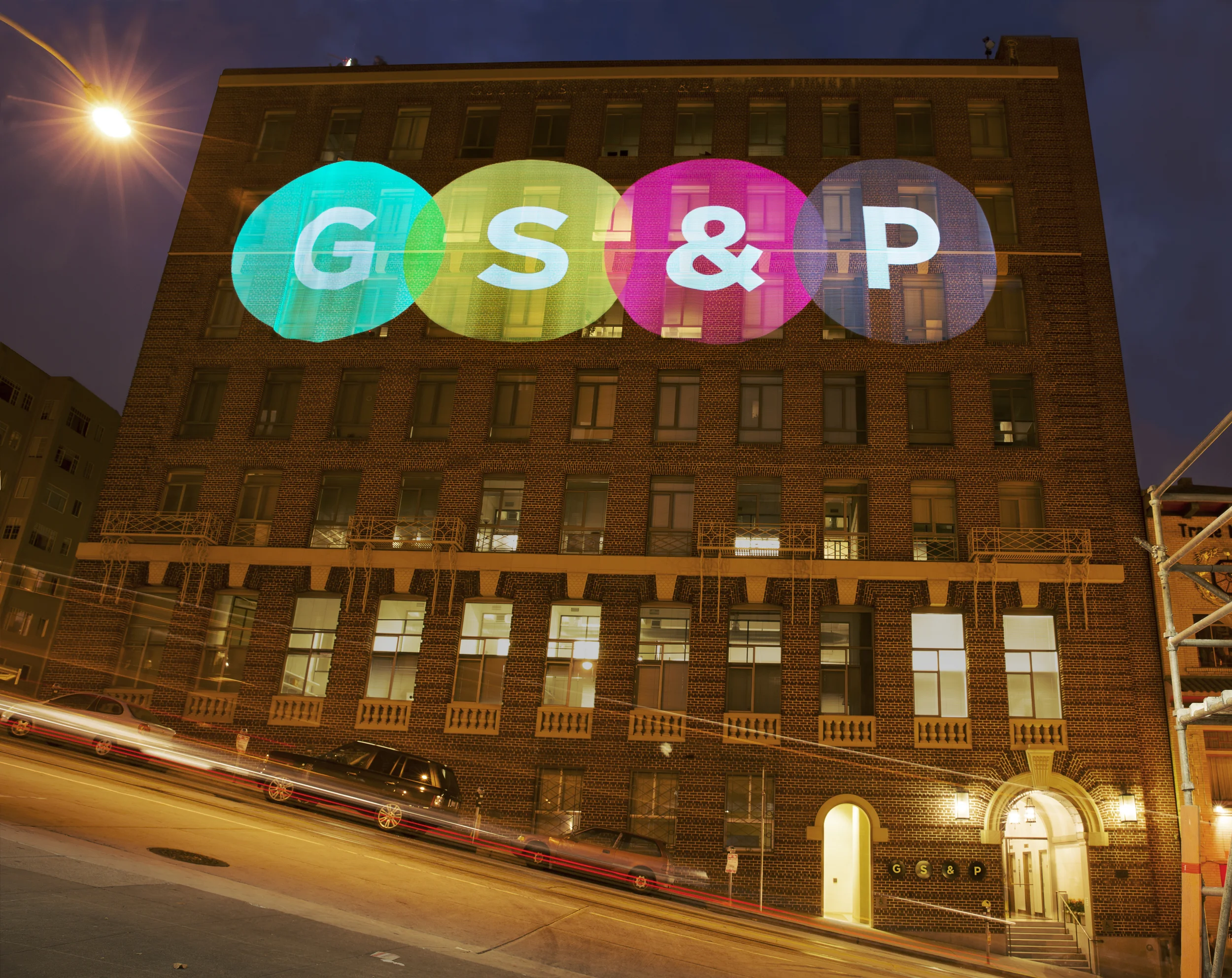

But in the end, we got it! (You can see us in the top left, above the "G")
